Product Center
Your Location : Home / Product Center / Optometry Equipments / Auto Refractometer Keratometer / FA-6500K Auto Refractometer Keratometer
| Name: | FA-6500K Auto Refractometer Keratometer |
|---|---|
Product Description

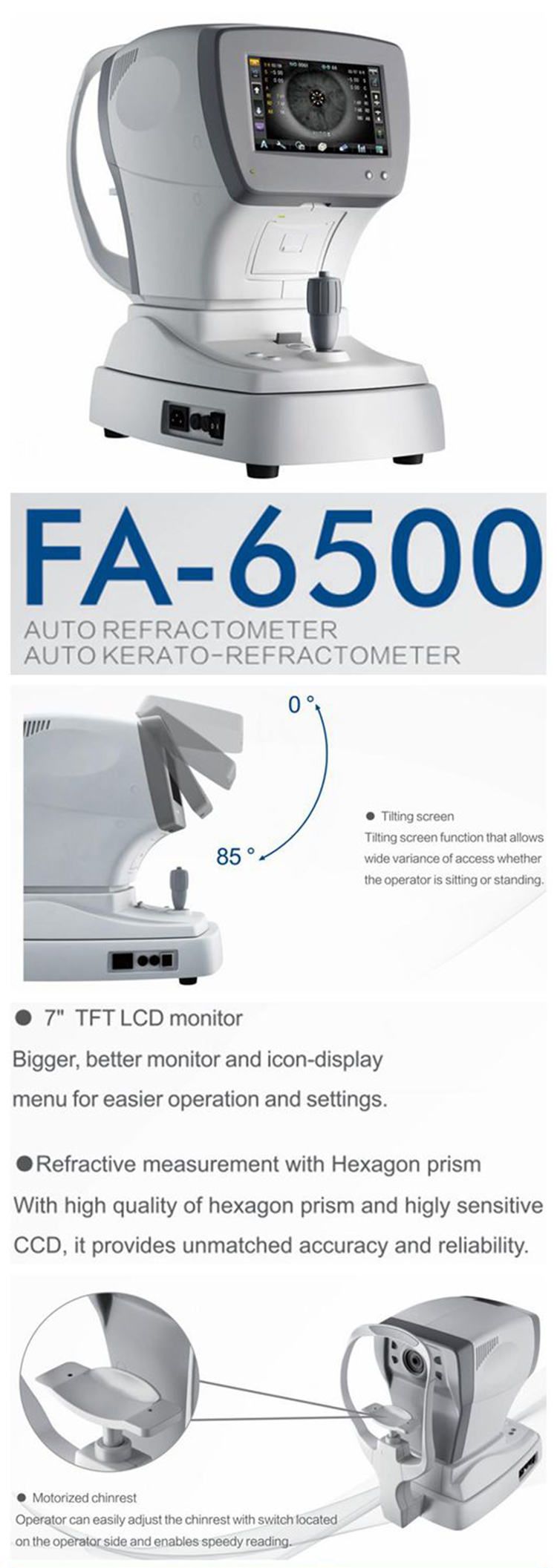

FA-6500K Auto Refractometer with Keratometer
Features:
Ø 7'' TFT LCD monitor, bigger and better monitor and icon-display menu for easier operation and settings
Ø With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability
Ø She can focus the eye and get the value automatically
Ø Operator can easily adjust the chinrest with switch located on the operator side and enables speedy reading
Ø tilting screen function that allows wide variance of access whether the operator is sitting or standing
Parameters:
Range of measurement | Sphere | -20~+20D(VD=12) 0.125D step |
Cylinder | -8~+8D 0.125D step | |
Axis | 0°~180° (1°step) | |
PD | 045-88mm,1mm step | |
VD | 0mm,12mm,13.75mm | |
Min Pupil Size | 2.0mm | |
Keratometry | Radius of curvature | 5.0~10mm (increment: 0.01mm) |
Corneal power | 33.75~67.50D(when comer equivalent refractive index is 1.337), (increment selectable from 0.12,0.25D) | |
Corneal astigmatism | 0.0~0.8D(increment selectable from 0.12,0.25D) | |
Axis | 1~180, (increment 1°) | |
Corneal diameter | 2.0~14.0mm (increment 0.1mm) | |
Memory of data | 10 measure value for each right and left eye | |
Others | Chart | Follow-up colorful fogging chart system |
Display | 7’ TFT LCD | |
Thermal print | ||
Power supply | 220V±10% , 50Hz 60VA | |
Dimension | 514mm*284mm*465mm | |
Weight | ~15.5KG |

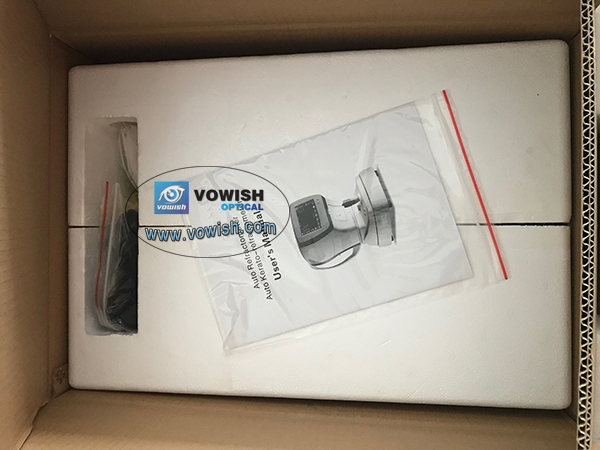

Packing details:
