| Name: | ALE-1200+ST-1200plus Patternless edger |
|---|---|
Product Description

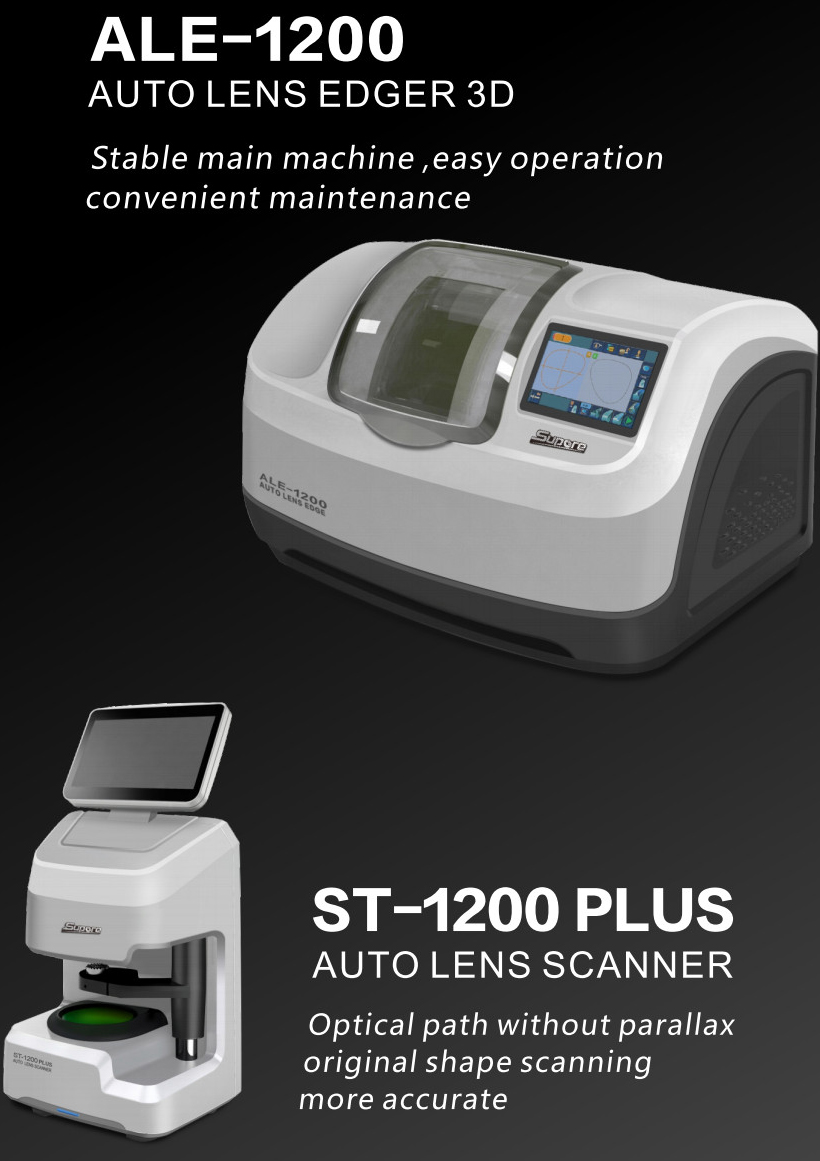

ALE-1200+ST-1200plus Patternless edger
Features:

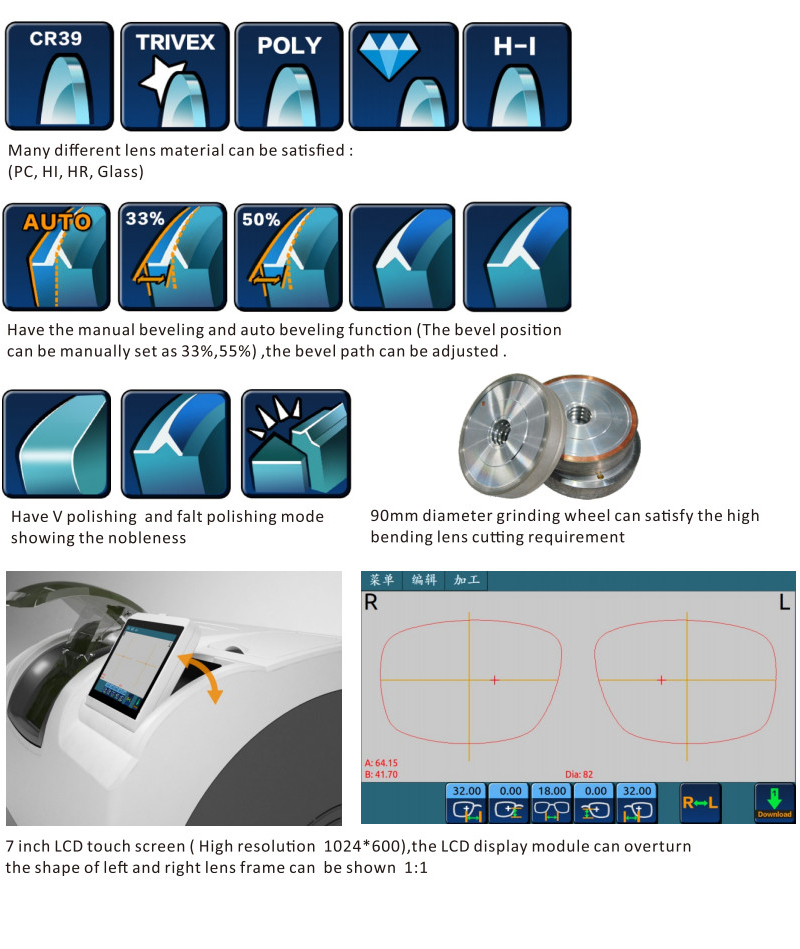

Ø 7 inch LCD touch screen (High Resolution 1024*600), the LCD module can overturn the shape of the left and right lens frames can be shown 1:1
Ø Satisfied with PC, HI, HR, Glass
Ø Have V polishing and fault polishing mode showing the nobleness
Ø 90mm diameter grinding wheel can satisfy the high bending lens cutting requirement
Ø Manual beveling and auto beveling function (the bevel position can be set 33%, 55% manually), the bevel path can be adjusted

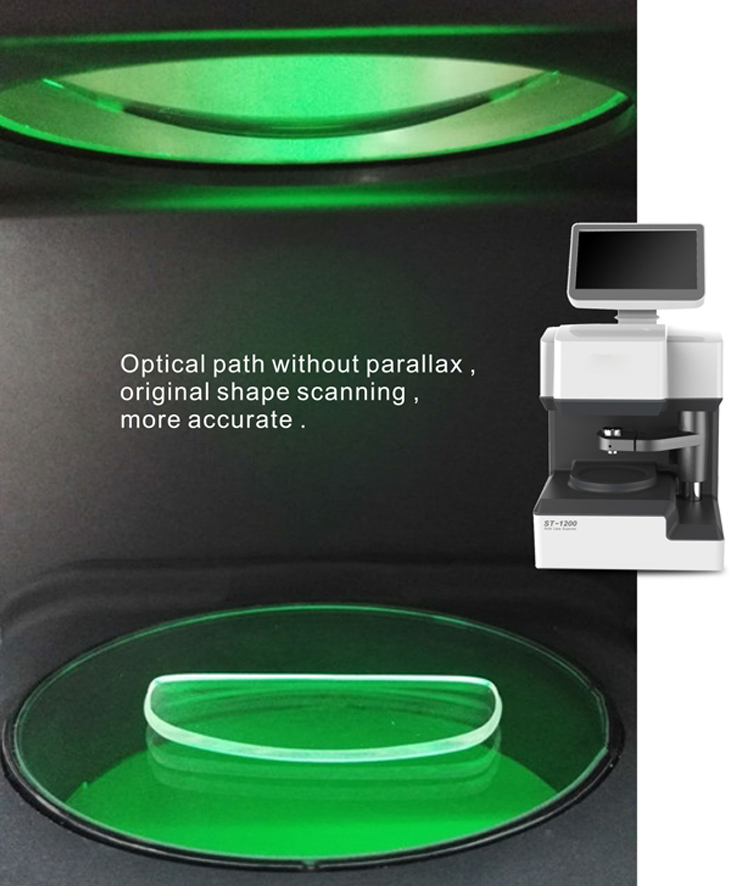

Ø Optical path without parallax
Ø original shape scanning
Ø more accurate
Parameters:
ALE-1200/ALE-1200G(with Grooving Function) | |
Dimension | 752mmx444mmx490mm |
Voltage | AC 230V-50HZ 110V-60HZ |
Power | 1500W |
Noise | 75 |
Pump Power | 350 |
Pump Voltage | AC 230V-50HZ 120V-60HZ |
Working environment | 5℃-40℃ |
Material | PC, glass, CR, HI,HR |
Screen | 7 inch LCD touch screen (High Resolution 1024*600) |
ST-1200 PLUS | |
Dimension | 250X230X360mm |
Voltage | AC 230V/115V 50/60HZ |
Power | 60W |
ADD adjusting range | 6mm |
Screen tilt range | 0~130 |
Max storage | 500 sets |
Touch Screen | 7 inch capacitive screen |
