| Name: | SK-650B Fundus Camera with FFA |
|---|---|
Product Description

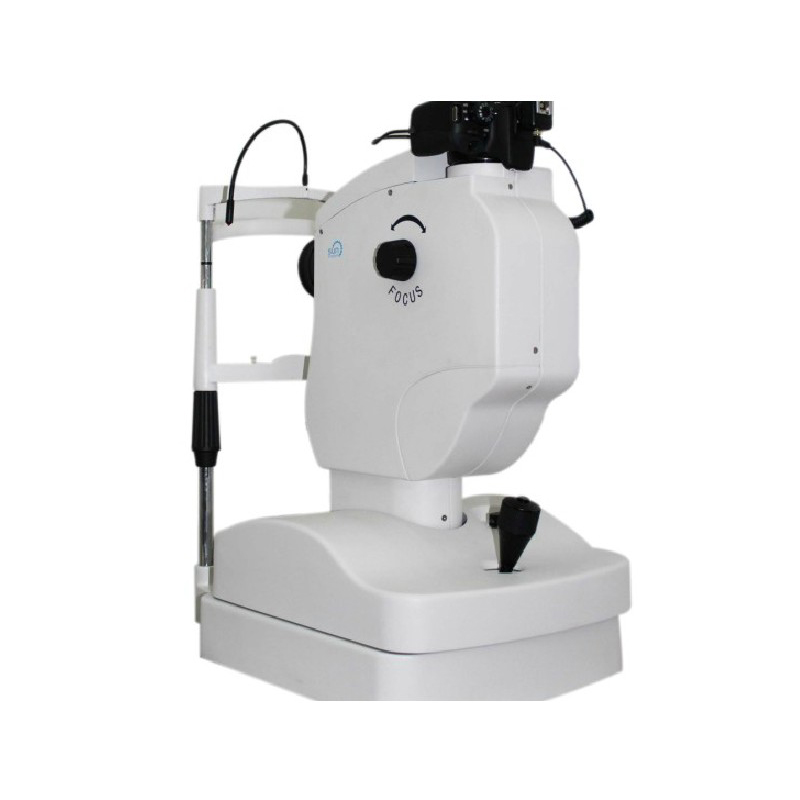

SK-650B Fundus Camera with FFA (fluorescein fundus angiography)

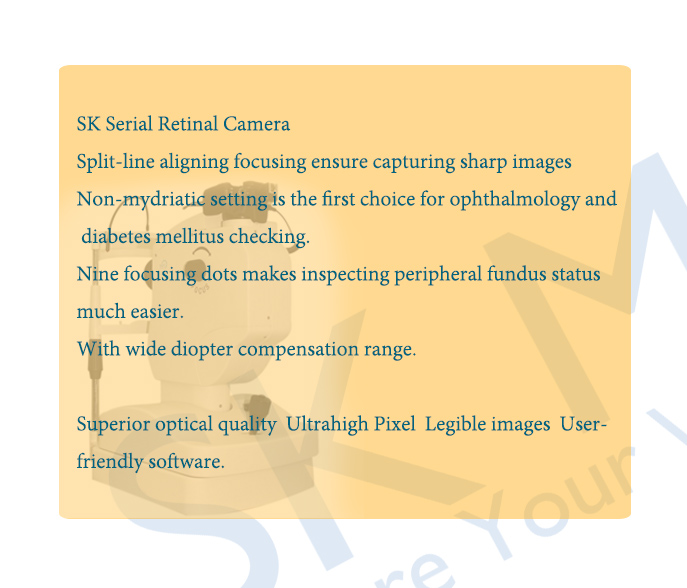

Features:
Ø SK Serial Retinal Camera
Ø Split-line aligning focusing ensure capturing sharp images
Ø Non-mydriatic setting is the first choice for ophthalmology and diabetes mellitus checking
Ø Nine focusing dots makes inspecting peripheral fundus status much easier
Ø With wide diopter compensation range
Ø Superior optical quality Ultragigh Pixel Legible images User-friendly software

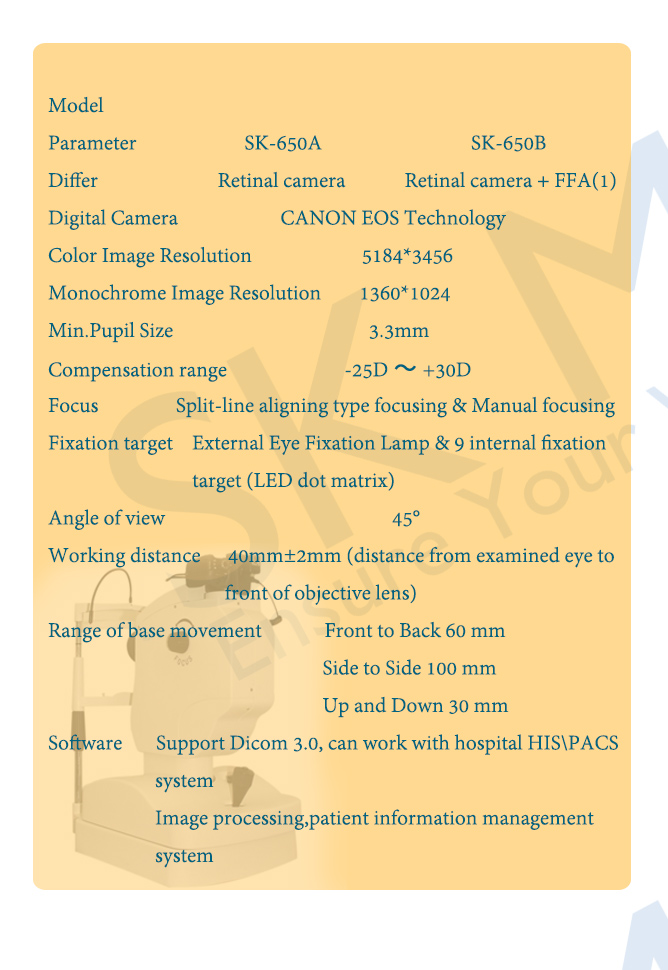

Parameters:
Model | SK-650B |
Differ | Retinal camera+FFA(1) |
Digital Camera | CANON EOS Technology |
Color Image Resolution | 5184*3456 |
Monochrome Image Resolution | 1360*1024 |
Min.Pupil Size | 3.3m |
Compensation range | -25D~+30D |
Focus | Split-line aligning type focusing & Manual focusing |
Fixation target | External Eye Fixation Lamp & 9 internal fixation target (LED dot matrix) |
Angle of view | 45° |
Working distance | 40mm±2mm(distance from examined eye to front of objective lens) |
Range of base movement | Front to Back 60mm |
Side to side 100mm | |
Up and Down 30mm | |
Software | Support Dicom3.0, can work hospital HIS/PACS system |
Image processing, patient information management system |
