| Name: | FR-710 Auto Refractometer |
|---|---|
Product Description

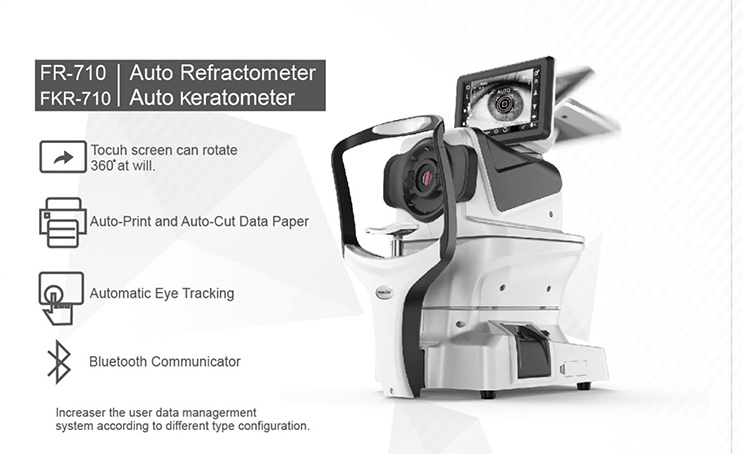

FR-710 Auto Refractometer
FR-710, Without keratometer function
Feature:

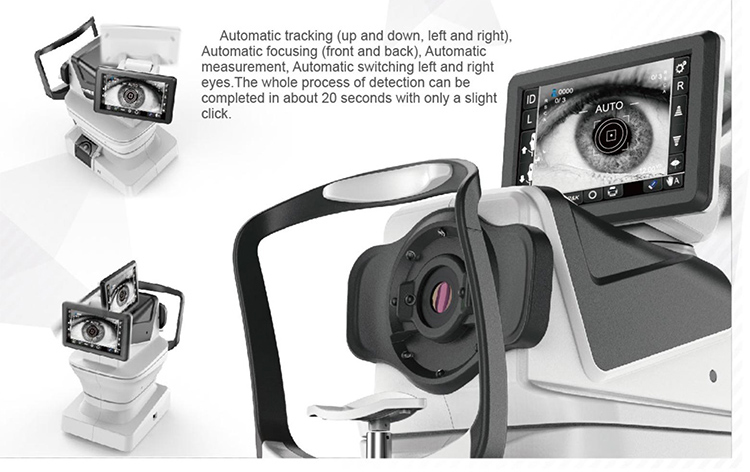

Ø Full automatic machine, only power on , put your head on chinrest, press any area on the screen, it will be automatic
adjust the chinrest, the machine position , and automatic measure, automatic print and cut paper .

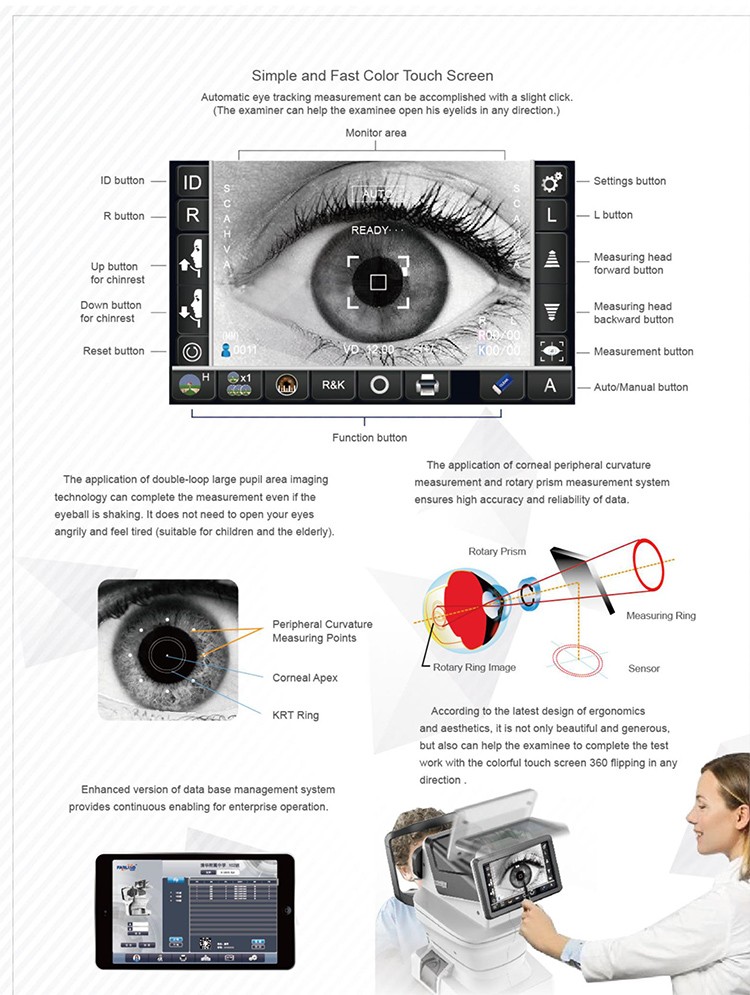

Ø 9" color and touch screen , 360° rotating screen .
Ø R/L Fully automated measurement
Ø Motorized main body horizontal and vertical moving automatic
Ø Motorized joystick automatic
Ø IOL function , can measure the eye did cataract surgical before,
Parameters:
Technical Specification | ||
Configuration | Specification | |
Measurement Mode (only FKR-710) | K&R mode | Diopter and corneal curcature measurement |
REF mode | Diopter measurement | |
KRT mode | Corneal curvature measurement | |
Mode of CLBC | contact lens curvature | |
Diopter measurement | Vertex Distance | 0, 12, 13.75, 15mm |
Spherical refractive power | -25.00~+22.00D | |
Cylindrical refractive power | 0.00~8.00D | |
Direction of astigmatic-xis | 1~180 ° | |
PD measurement | 45mm~85mm | |
Minimum pupil diameter | 2.0 | |
Corneal | Corneal | 5.5mm ~10mm |
Direction of corneal astigmatic axis | 1~180 ° | |
Corneal diameter | 2.0 ~ 12.0mm | |
Product specifications | Printer | Imported Thermal printer |
Saving Settings | 1/5/10/20/40 Minutes automatic screensaver | |
Monitors | 9 inch of TFT monitors | |
Power | AC 110 ~ 230V,50/60HZ/ 75VA | |
Size / Weight | 300(W ) × 450(D) × 500-530(H) mm/21KG | |
