Measuring accuracy:

±0.02mm.

Measuring parameter:

ACD, LENS, body Length, axial length.

Eye mode:

normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.

Measuring Mode:

Contact and Immersion, automatic and manual.

Calculation:

std. deviation, average, automatic measuring 8 groups and average, accompany waveform, results correctable.

Measurement methods:

A single-point measurement(under A mode); five-point measurement (under A mode).

IOL Formula:

SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS.

Magnification:

 ×1.0, ×2.0, x4.0.

Display Depth:

0~36mm , delayed depth: 0--36mm.

Measurement Way:

A single point measurement

B scan parameter:

Scan mode:

High resolution and contrast B scan

 Scan Angle:

53°

 Display Depth:

0~88mm(incl.delayed depth)

Delayed depth:

25--32mm

Gray:

256

Frame frequency:

 30frames/s

Depth selection:

8

Frame correlation:

4

 Edge enhancement:

4

Compression Curve:

8

Post-processing:

8

Pseudo colors:

8 kinds (incl. B/W)

General Measurement:

multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method),

angle , histogram, profile , stenosis and curvature etc.

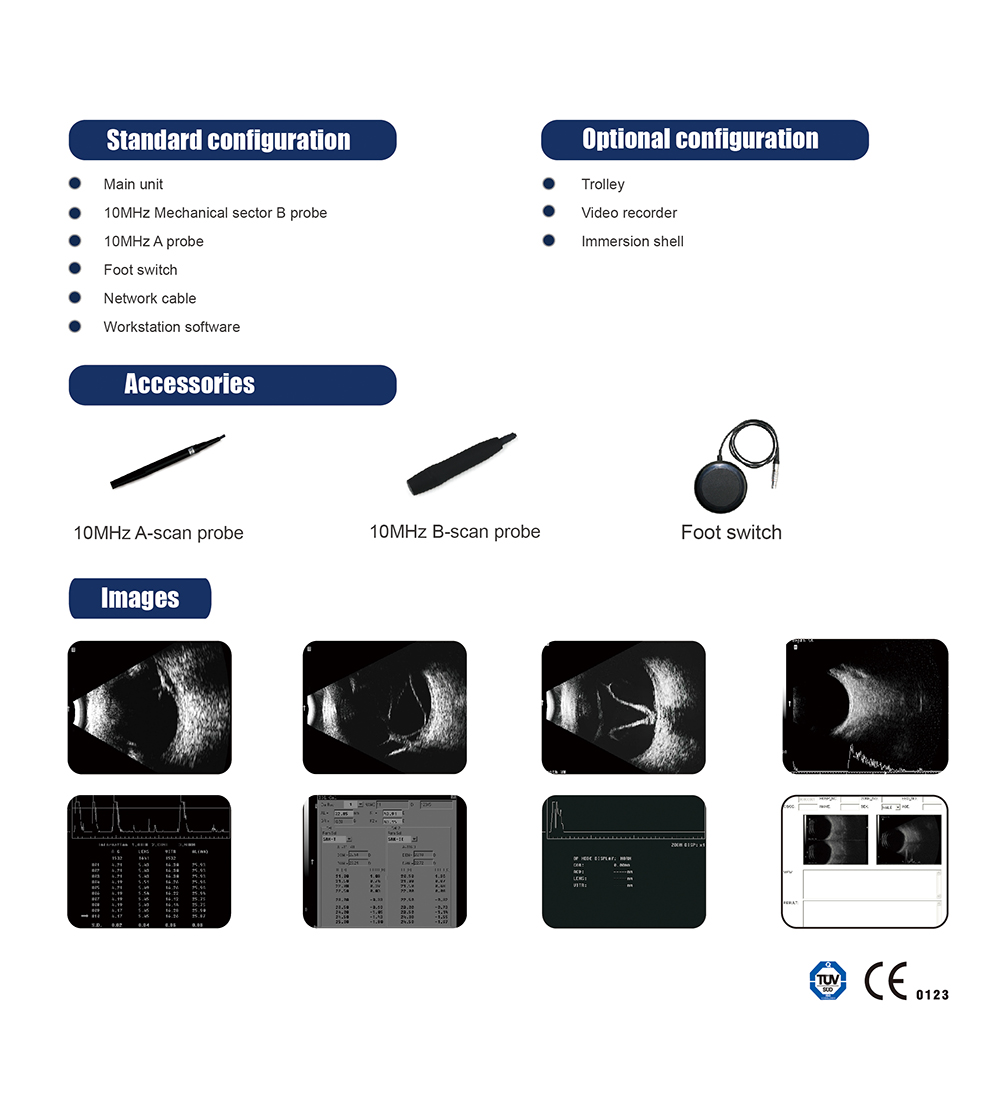

Standard Configuration:

Main unit

10MHz mechanical sector B probe

10MHz A probe

Calibration cup

Network cable
