| Name: | FKR-710 Auto Refractometer Keratometer |
|---|---|
Product Description

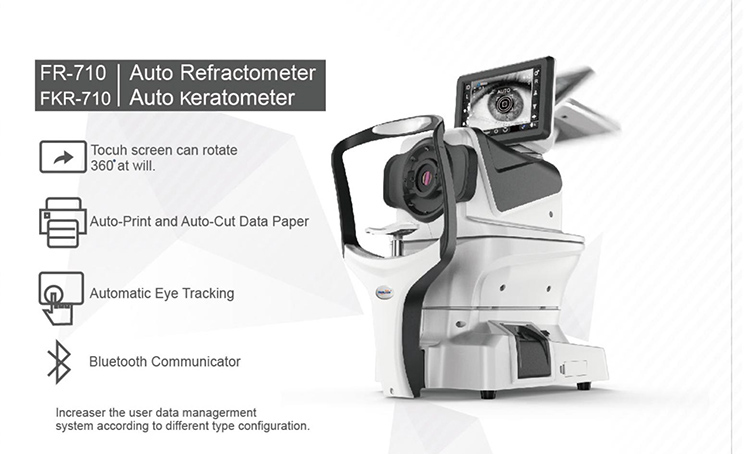

FKR-710 Auto Refractometer Keratometer
Feature :

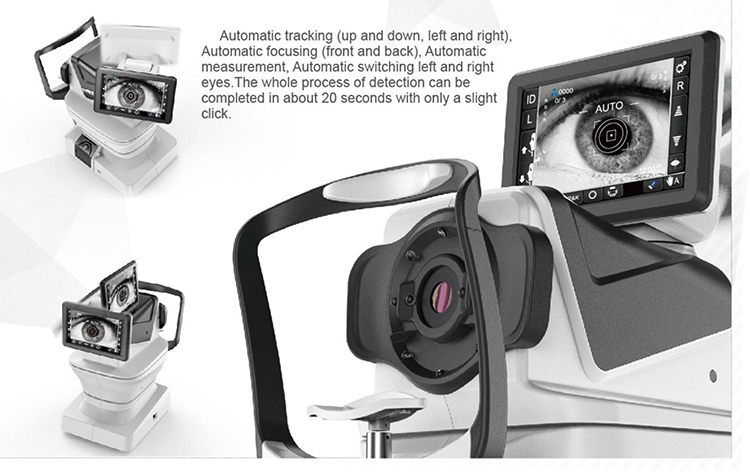

ØFull automatic machine, only power on, put your head on chinrest, press any area on the screen, it will be automatic
adjust the chinrest, the machine position, and automatic meausre, automatic print and cut paper .

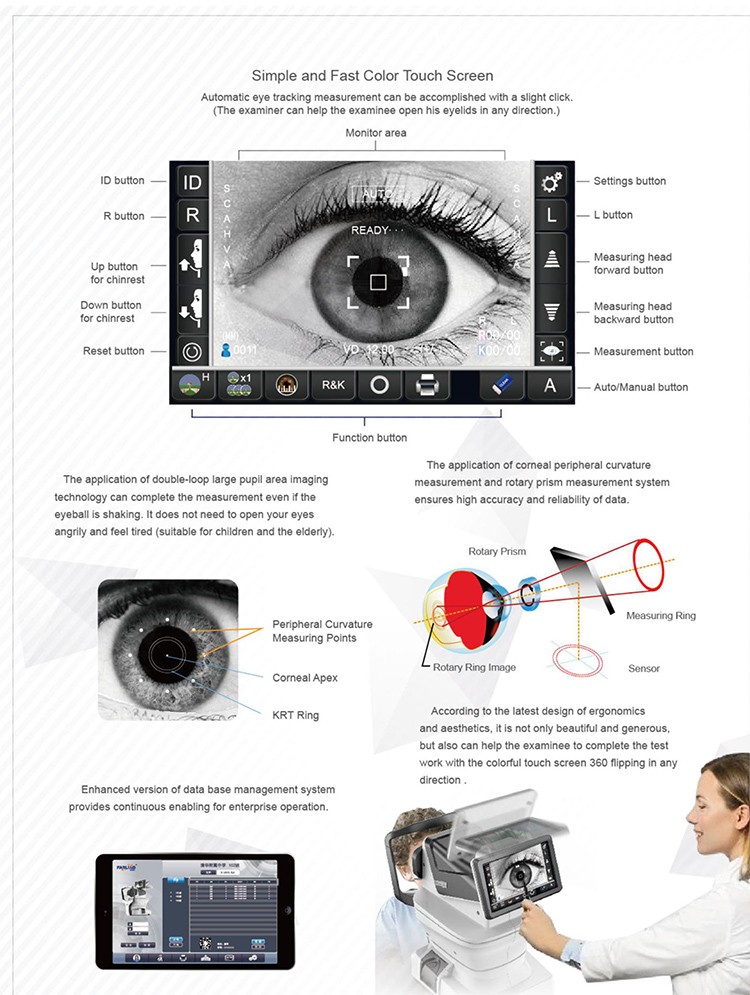

Ø9" color and touch screen, 360° rotating screen .
ØR/L Fully automated measurement
ØMotorized main boday horizontal and vertical moving automatic
ØMotorized joystick automatic
ØIOL function, can measure the eye did cataract surgical before,
Parameters:
Technical Specification | ||
Configuration | Specification | |
Measurement Mode (only FKR-710) | K&R mode | Diopter and corneal curcature measurement |
REF mode | Diopter measurement | |
KRT mode | Corneal curvature measurement | |
Mode of CLBC | contact lens curvature | |
Diopter measurement | Vertex Distance | 0, 12, 13.75, 15mm |
Spherical refractive power | -25.00~+22.00D | |
Cylindrical refractive power | 0.00~8.00D | |
Direction of astigmatic-xis | 1~180 ° | |
PD measurement | 45mm~85mm | |
Minimum pupil diameter | 2.0 | |
Corneal | Corneal | 5.5mm ~10mm |
Direction of corneal astigmatic axis | 1~180 ° | |
Corneal diameter | 2.0 ~ 12.0mm | |
Product specifications | Printer | Imported Thermal printer |
Saving Settings | 1/5/10/20/40 Minutes automatic screensaver | |
Monitors | 9 inch of TFT monitors | |
Power | AC 110 ~ 230V,50/60HZ/ 75VA | |
Size / Weight | 300(W ) × 450(D) × 500-530(H) mm/21KG | |
