Spherical Range:

-20.00D ~ + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 Increments)

Cylinder Range:

0.0D ~ + 10.00D (0.06, 0.12, 0.25 Increments)

Axis:

1°~ 180° (1° Increments)

Cylinder Symbol:

-, +,土

PD:

10 ~ 86mm

Mini Pupil Size:

2.0mm

Average Measurement Time:

<0.5 seconds.

Pupil Distance:

2.00 - 8.00mm

Max Brightness:

<30uw (safety Assure)

Curvature Radius:

5.0 ~ 10.0mm (0.01 mm Increments)

Refractive Power:

33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375)

Corneal Power:

0.00D ~ -15.00D (0.06D / 0.12D / 0 25D Increments)

Date Save:

10 Group Left/Right Eye

Axis:

1°~ 180。

Target:

Auto Fog

Monitor:

8- inch TFT Touch Screen (Flip)

Printer:

57mm Width, Auto Cut

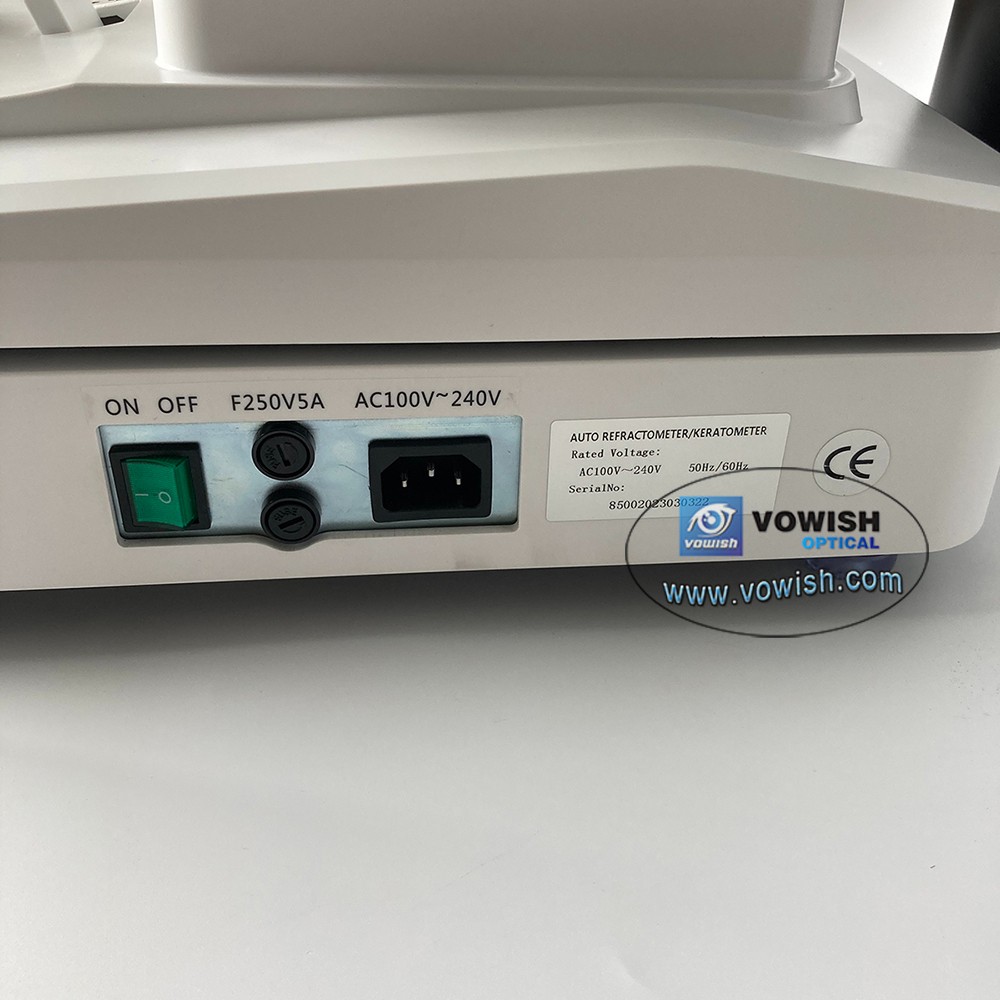

Power :

AC 100 ~ 250V, 50 / 60Hz, Wide Voltage

Net Weight:

22Kgs

Gross Weight:

26.5Kgs

Packing:

(L) 680mm x (W) 400mm x (H) 640mm
